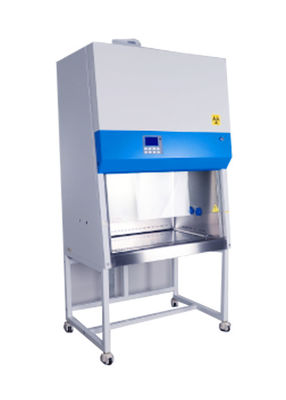

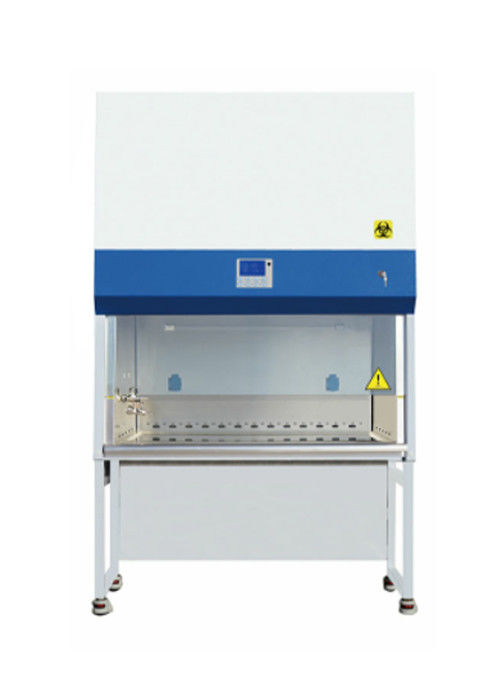

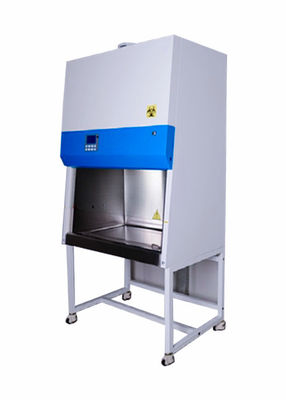

Laboratory Laminar Flow Clean Bench

Laboratory Laminar Flow Clean Bench

    • Laboratory Laminar Flow Clean Bench
    • Laboratory Laminar Flow Clean Bench
    • Laboratory Laminar Flow Clean Bench
  • Laboratory Laminar Flow Clean Bench

    Product Details:

    Place of Origin: China
    Brand Name: OEM
    Certification: CE/ISO9001/ROHS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Polywood packing
    Delivery Time: 7-15 Working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 200 Sets per Month
    Contact Now
    Detailed Product Description
    Name: Laminar Flow Clean Bench External Size (L*W*H): 1100X750X2250mm
    Internal Size (L*W*H): 940X600X660 Work Surface Height: 750mm
    Air Flow System: 100% Air Exhaust Purification Rank: HEPA ISO5(Class 100); ULPA ISO4(Class 10)
    Highlight:

    Laboratory Laminar Airflow Workbench

    ,

    Vertical Laminar Air Flow Cabinet

    ,

    Class 100 Laminar Flow Clean Bench

    Laboratory Laminar Flow Clean Bench





    Introduction :



    The biosafety cabinet protects the operator , the laboratory environment , and the laboratory materials from exposuring to the above operations in order to manipulate infectious materials such as primary cultures , bacterial strains , and diagnostic specimens . Designed for the production of infectious aerosols and spills . The biological safety cabinet is a vacuum cleaning workbench that correctly operates the biological safety cabinet , which can completely protect the workers , the tested samples and prevent cross-contamination . Among them , the B2 type biosafety cabinet air circulation : 100% exhaust . The B2 type biosafety cabinet must be equipped with an external fan , the exhaust system is sealed , and the external ventilation duct , 100% of the air is filtered and discharged to the outside or connected to the exhaust system . The B2 type is equipped with an external exhaust fan .





    Application :



    Pharmaceutical factory , biotechnology research laboratory , tissue culture laboratory  , hospital  , health quarantine , research institute .





    Operation features :



    1. The work area is surrounded by negative pressure to ensure maximum safety in the work area .
    2. Strict cabinet leak detection to ensure that the cabinet does not leak under 5500Pa conditions .
    3. Front window opening height limit sound and light alarm system and lighting control linkage .
    4. Strict HEPA/ULPA filter leak detection to ensure scanable filter leakage rate ≤ 0.05% .
    5. Vertical laminar flow negative pressure type, the airflow cycle of the B2 biosafety cabinet is 100% exhaust .



    Parameter:





    Biological safety cabinet
    External Size (L*W*H)mm 1100X750X2250 1300X750X2250 1500X750X2250

    Internal Size

    (L*W*H)mm

    940X600X660 1150X600X660 1350X600X660
    Purification Rank HEPA ISO5 ( Class 100 ); ULPA ISO4 ( Class 10 )
    Material Work zone : stainless steel 304 ; Cabinet : cold rolled steel with anti-bacteria powder coating
    Air Flow System 0% Air Re-circulation , 100% Air Exhaust
    Max Opening(mm) 420 420 500
    Hepa Filter Two sets    99.999% Efficiency  @0.3um Filter life indicator
    Control System Microprocessor, LCD Display , Exhaust filter and down filter pressure , humidity and temperature, system working time .
    Tap Water tap or Gas tap for choose : 1 set
    Noise EN1249<58dB / NSF49<61dB
    Fluorescent Lamp 21W 21W 28W
    Waterproof sockets Two set Totally Consumption : <500W
    Work Surface Height 750mm
    Illumination >1000lux
    Caster Footmaster Caster
    Standard Accessory Base stand , remote control , foot switch , drain value , ( exhaust blower exhaust duct ) for B2 only
    Power supply AC220V  +_ 10% 50/60HZ   110V +_ 10%60HZ
    Consumption 700W 850W 900W



    Laboratory Laminar Flow Clean Bench 0
