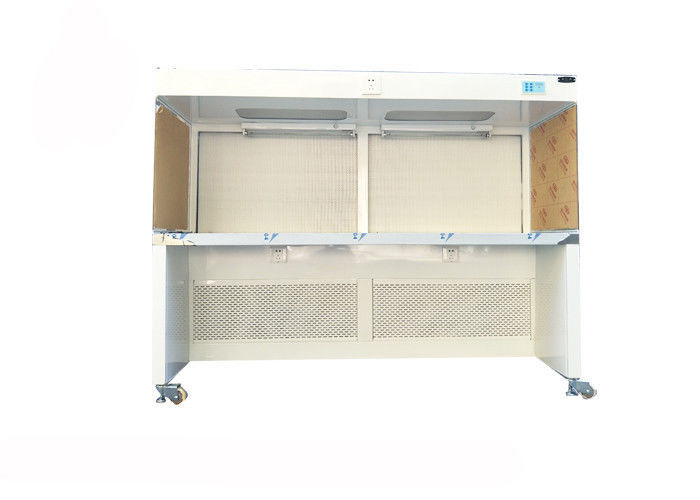

Laboratory Hepa Filter Horizontal Cleanroom Workbench

Laboratory Hepa Filter Horizontal Cleanroom Workbench

Clean bench/laminar flow cabinet is a specialized equipment to make partial area high cleanliness.It is widely applied to industries that require high cleanliness on partial areas, such as laboratory, biotechnology, opto-electronics, micro-electronics and hard disk manufacturing etc. The clean bench enjoys multiple features, including high cleanliness,low noise, reliable operation, strong removability and being able to be installed to assembing line.

Description:

Laminar flow cabinets create particle-free working environments by projecting air through a filtration system and exhausting it across a work surface in a laminar or uni-directional air stream.

They provide an excellent clean air environment for a number of laboratory requirements.

A Horizontal Laminar Flow Cabinet discharges particle free air horizontally, out of the cabinet towards the operator. The constant flow of uni-directional or laminar HEPA filtered air acts as a barrier and prevents airborne contaminants from entering the work zone.

Application:

Laminar flow cabinets are suitable for a variety of applications and especially where an individual clean air environment is required for smaller items, e.g. particle sensitive electronic devices.'

In the laboratory, laminar flow cabinets are commonly used for specialised work.

It is widely applied to industries like electronics, instrument, apparatus, National Defense, medical care and pharmacy etc.

Optional accessory:

1. Hepa filter or ULPA filter

2. Static-free top or stainless steel top, the top can be punched

3. Framwork is used of common cold rolled steel plated with powder coated or stainless steel.

4. Domestic or EBM fans

5. Pressure gauge

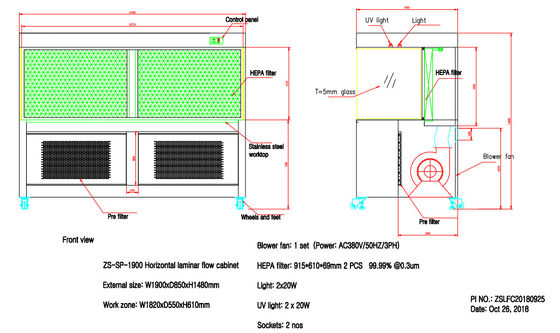

Standard size and specification:

Note: Customized size and specification can be acceptable.

Control Panel:

HEPA filter, Light and UV Light:
