Place of Origin: | China |
Brand Name: | OEM |
Certification: | CE/ISO9001/ROHS |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiation |
Packaging Details: | Polywood packing |
Delivery Time: | 7-15 Working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 200 Sets per Month |
In Size(MM): | W800xD900xH2000mm | Weight: | 380KG |
---|---|---|---|
Voltage: | AC220V, 50 Hz, 1PH | Clean Room: | 100 Class |
Dimension(WxDxH): | W1400xD1000xH2100mm | Blowing Side: | Two Side Blowing |
Material: | Power Coated Steel | Name: | Cleanroom Air Shower |
High Light: | Air Flow Modular Clean Room,32 Nozzles Air Shower Unit,100 Class Stainless Steel Air Shower |

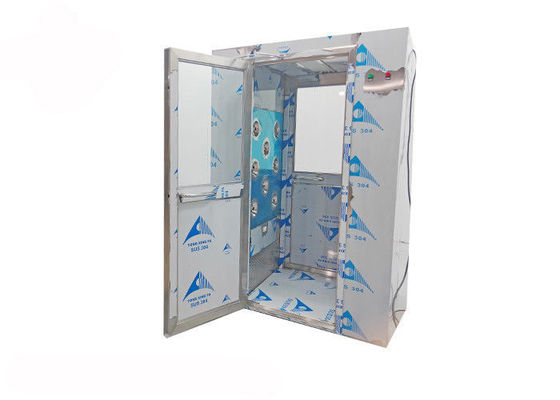

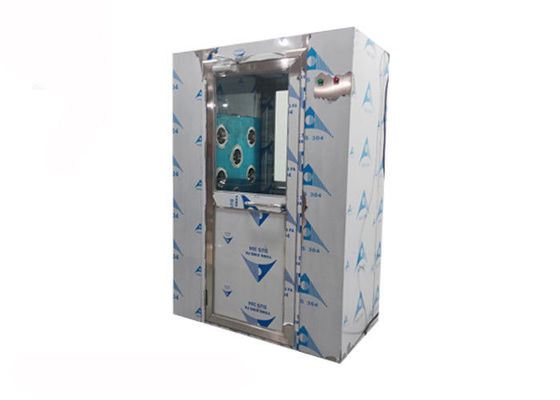

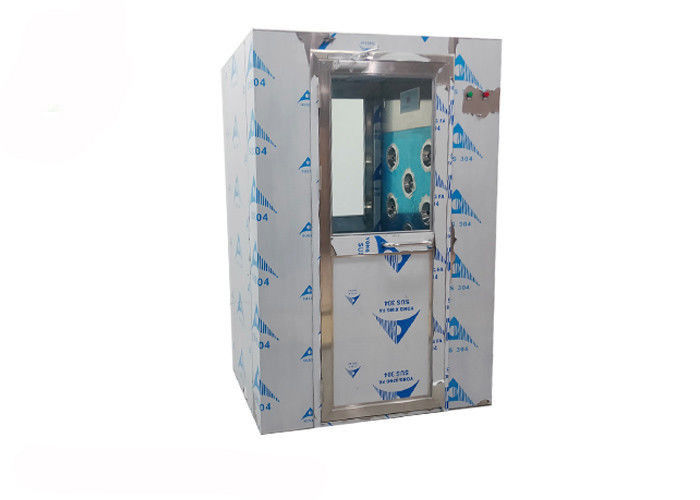

100 Class 32 Nozzles Air Flow Cleanroom Shower
Description:
Cleanroom air shower is a kind of partial purifying equipment of strong universality. With novel structure, beautiful appearance, reliable running, low consumption, energy saving and convenient maintenance, it is widely used in electron, machinery, medicine, foodstuff, color packing, brewage, biological engineering and other industry and scientific research fields. It is usually installed between clean room and unclean room. When people and goods enter into clean room, they have to be blown at first. The blown clean air can get rid of dust bough by people and goods and can effectively prevent dust source from entering into clean area.
Principle
The air inside of air shower is firstly filtered under the action of fan and enters into static pressure tank.
After filtered with high-efficiency air filter, clean air is jet out at high speed from the nozzle of air shower.
The nozzle angel is adjustable. It can effectively blow out dust attached on people and goods’ surface.
The blown dust enters into primary-efficiency air filter again, circulating so and reaching to the aim of air shower.
Full stainless steel Air shower/New Corner Air shower Air shower material
1. color steel plate
2. steel plate
3. stainless steel
Features:
The two doors of the automatic air shower are electronically interlocked and can function as an air lock chamber to prevent external pollution and unpurified air from entering the clean area.
Eliminate the staff to bring hair, dust, bacteria into the workshop, to meet the strict dust-free workshop purification standards of the workplace, meet the production environment pollution requirements, and produce high-quality products.
Product | Clean room Air Shower for 1-2 persons |
External size | W1400xD1000xH2100MM |
Internal size | W800*D900*H1960mm |
Material: | T=1.2 mm stainless steel 304 for main body and base |
Doors type |
W=800mm stainless steel single-leaf sliding door for entrance door and exit door |
Door closer | 2 SETs |
Electric lock | 2 SETs |
Indicator lights | Green and red |
Blower fan | 2sets,capacity: 1800CMH/set |
99.99% HEPA filter | 610*610*69mm 2pcs |
Pre filter | 2 pcs |
Nozzle | 16+16=32pcs |
Bloweing type | Two -side blowing, wind speed: >20-25m/s |
Control system | Control by IC control panel |
Photoelectric snesor | Omron brand 1pcs |
Philips LED light | 1x18W |
Application: Stainless Steel Air Shower is usually used for Food , medicine, biological or other industry.
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
