    Product Details:

    Place of Origin: China
    Brand Name: OEM
    Certification: CE/ISO9001/ROHS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Polywood packing
    Delivery Time: 7-15 Working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 200 Sets per Month
    Contact Now
    Detailed Product Description

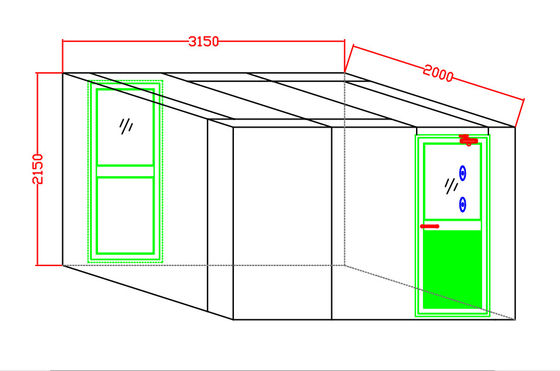

    Dimension(WxDxH): W3150*D2000*H2150mm In Size(MM): W2550*D1400*H2000mm
    Weight: 980KG Clean Room: 100 Class
    Blowing Side: 2- Side Blowing Material: Power Coated Steel
    Suitable: 5-6 Persons Voltage: 380V, 50 Hz, 3PH
    High Light:

    Industrial Modular Clean Room

    ,

    54 Nozzles Air Shower Unit

    ,

    Automatic Stainless Steel Air Shower

    L Type Corner Cleanroom Shower



    Description:



    To keep the cleanliness of cleanroom, when people enter from non-cleanroom, there is a passage room which have to prevent the air convection current to avoiding make dirty the clean room, it calls air shower.



    There are two doors which are in interlock state, one door is open,  other is closed, they cannot be open at the same time.



    When people go into air shower, the blower fan is working, air go throught primary filter, then be absorbed blower fan, then air go through HEPA filters, clean air will be go out from nozzles at high speed wind >20m/s, it can remove the dust particles from people's clothes, hair and shoe.



    people enter clean room only after pass air shower.



    Features:



    1. Air shower room is a dust removal and purification equipment necessary for personnel to enter the clean room dust-free workshop lock. It has strong versatility and can be used with all clean rooms and clean rooms.
    2. When the staff enters the workshop, the clean air filtered by the high-efficiency filter must be sprayed from all directions to the person or the cargo by the rotatable nozzle, thereby effectively and quickly removing the adhesion to the clothes and the goods. Dust, hair and other debris on the surface, it can reduce the pollution caused by people entering and leaving the clean room.



    Product L Type Corner Air Shower
    External size W3150xD2000xH2150MM
    Internal size W2550*D1400*H2000mm
    Material: T=1.2 mm powder coated steel for main body and base
    Doors type

     W=800mm aluminum single-leaf sliding door for entrance door and exit door

    Door closer  2 SETs
    Electric lock   2 SETs
    Indicator lights Green and red
    Blower fan   6sets,capacity: 1600CMH/set
    99.99% HEPA filter  610*610*69mm 6 pcs
    Pre filter   1 pcs
    Nozzle 24+18+12=54 pcs
    Bloweing type two -side blowing, wind speed: >22-25m/s
    Control system Control by IC control panel
    Photoelectric snesor Omron brand 1pcs
    Philips LED light 3x8W





    Application: Stainless Steel Air Shower is usually used for Food , medicine, biological or other industry.





    Testing in factory:



    All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.



    Warranty:



    The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

    All equipment is shipped with a comprehensive use’s manual with testing report.

    Additional IO/OQ/GMP document is available upon request.

    Contact our sales representative for specific warranty details or document request.

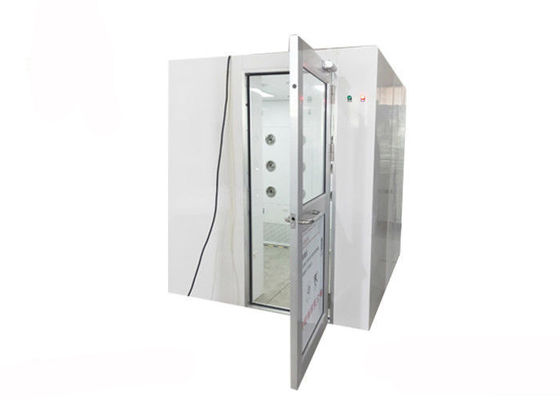

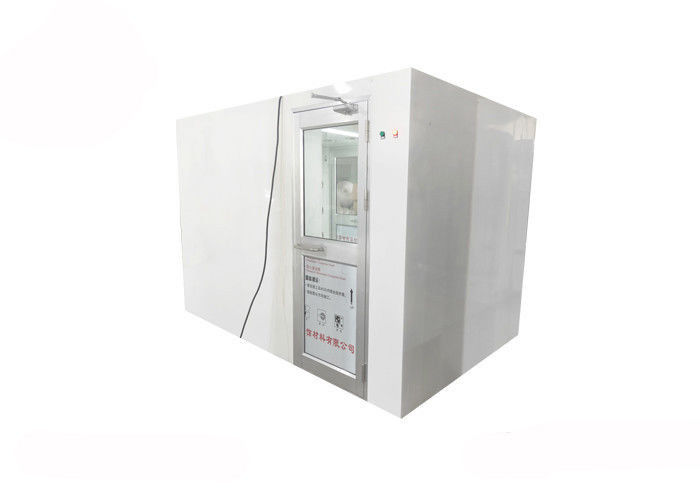

    Air Shower's Photos:



    L Type Corner Cleanroom Shower 0
