Easy Operation Adjustable Vertical Cleanroom Workbench

Product Details:

Place of Origin:	China
Brand Name:	OEM
Certification:	CE/ISO9001/ROHS

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Polywood packing
Delivery Time:	7 - 10 Working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	200 Sets per Month

Contact Now

Detailed Product Description

Name:	Vertical Cleanroom Workbench	External Size ( WDH ):	1000X700X1800mm
Working Area ( WDH):	900X650X600mm	Purification Rank:	Class 100
Air Speed:	0.3 - 0.6 M/s ( Adjustable )	Noise:	< 65dB
High Light:	Vertical Cleanroom Workbench , Adjustable Laminar Air Flow Cabinet , Easy Operation Laminar Flow Clean Bench

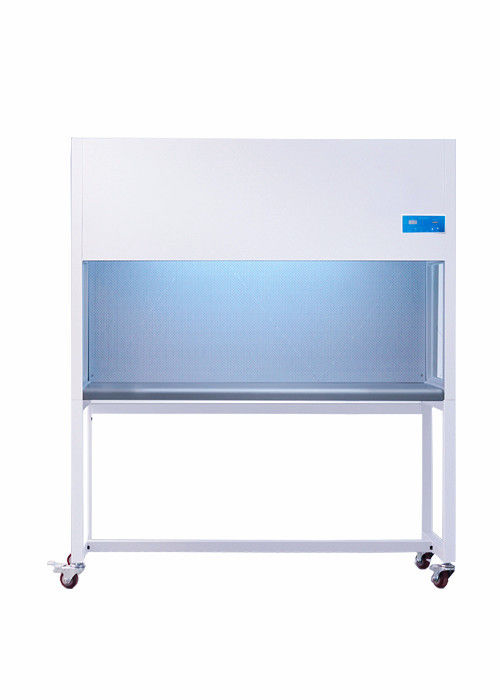

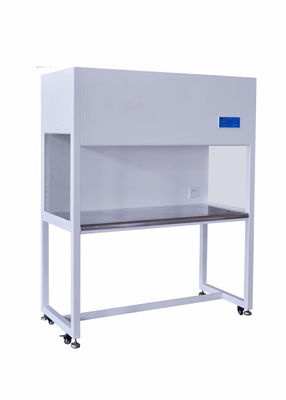

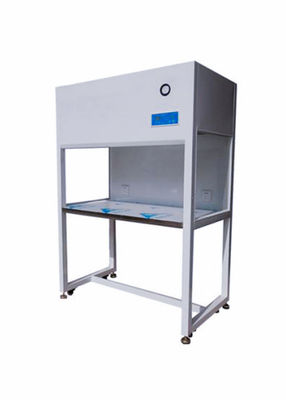

Easy Operation Adjustable Vertical Cleanroom Workbench

Introduction :

Vertical Laminar Air Flow Clean Carbinet is a kind of clean air equipment that provides local clean an sterile working environment , which can make the working area meet the requirement of 100% purification . Comparing with building clean rooms , this equipment reduces cost in initial investment and operating cost and create a favorable environment for improving the production quality and yield .

Application :

Electronics , Semi - conductors, Medicine and Health , Biological pharmaceuticals , Aerospace , Aseptic laboratory , Scientific research , Food , Hard-disk manufactory , Precise instrument , Opto - electronics

Operation Features :

1. The air moves downward from filter positioned in the ceiling toward the working area .

2. Vertical Laminar Clean Air Flow cabinet offers the benefits of vertical airflow around objects on the work surface and horizontal outflow through the work access opening acting as a barrier against contamination .

3. The work surface on each vertical laminar air flow clean carbinet is constructed from stainless steel for easy cleaning and decontamination .

4. Wind velocity can be adjusted with optional wind velocity controller .

5. The design of glass on the two side windows and no front sash ensure a bright and spacious working area .

6. Easily and flexibly moving with high quality casters and conveniently and reliably fixation with support legs .

7. High efficiency and high cleanliness .

8. Low noise , easy operation .

Illustration:

1: Pre - filter , 2: Centrigugal blower , 3: Pressure gauge , 4; Mini-pleats Hepa filter , 5:Control panel , 6; Fluorescent lamp , 7； Toughhened glass , 8; Socket , 9: Working table ( SUS ) , 10: Removable wheel , 11； Support leg

Parameter :

Vertical Laminar Air Flow Clean Cabinet
Model	KEL - VCB1	KEL - VCB2	KEL - VCB3
External size ( W * D * H ) mm	1000X700X1800	1200X700X1800	1500X700X1800
Working area ( W * D * H ) mm	900X650X600	1100X650X600	1400X650X600
Purification Rank	Class 100 ( FS209E )
Rating Air Flow	950m3 / h	1100m3 / h	1400m3 / h
Construction	Cabinet is steel with power coated and working area is SUS304 / 201 . Cabinet and working area is SUS 304 / 201 .
Filtration efficiency	More than 99.99 % @ 0.3um H13 - H14
Air speed	0.3 - 0.6m/s ( Three levels are adjustable )
Pressure gauge	American Dwyer Pressure Watch 1pcs
Fluorescent lamp	20W * 1pcs	30W * 1pcs	40W * 1pcs
UV light	1pcs
Illumination	> 400LUX
Blower	280W	405W	490W
Noise	< 65dB
Power Supply	220V - 240V 50 / 60HZ
