Place of Origin: | China |
Brand Name: | OEM |
Certification: | CE/ISO9001/ROHS |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiation |
Packaging Details: | Polywood packing |
Delivery Time: | 7-15 Working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 200 Sets per Month |
Frame Material: | SUS Aluminum/Stainless Steel | Lighting: | LED Light |
---|---|---|---|
Cleanliness: | From Class100/1000/10000 | Specification: | Customize |
Transport Package: | Export Wooden Case | Name: | Portable Clean Room |
High Light: | Class 1000 Softwall Clean Room,Dustproof Portable Clean Room,Mobile Laminar Flow Booth |

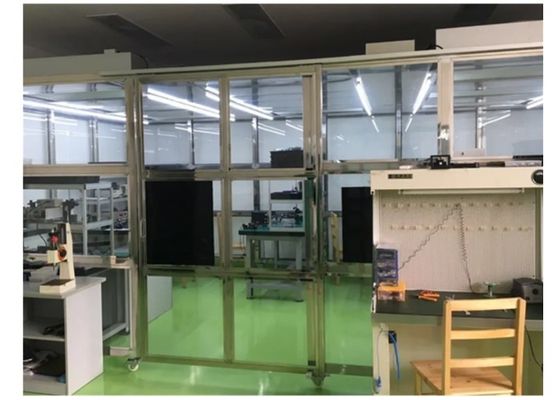

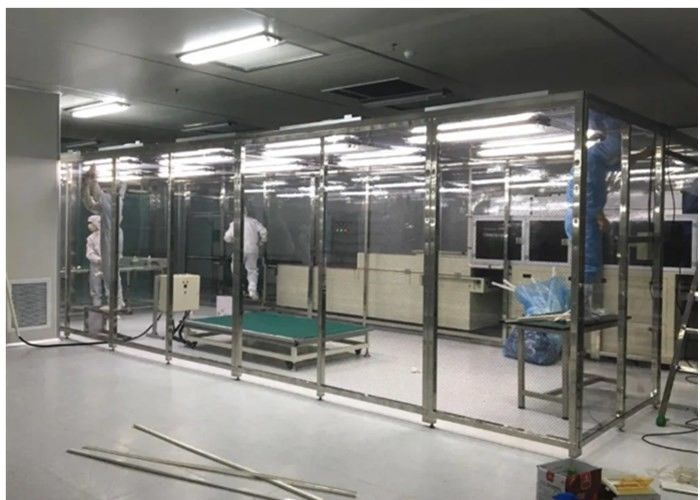

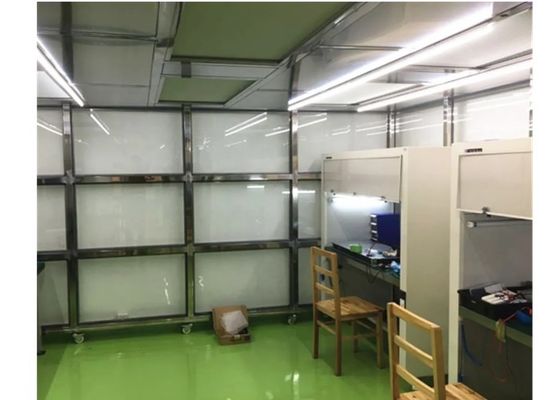

Mobile Class 1000 Dustproof Softwall Clean Room
Product Description
Clean booth is a special designed room to exclude the particles in the air, bacteria and other harmful air pollutants, and the indoor temperature, cleanliness, interior pressure, air velocity and air distribution, noise, vibration, and lighting, static control within the scope of a certain demand. That is no matter how the outside air conditions change, its indoor all can maintain the original set requirements of cleanliness, temperature and humidity and pressure performance characteristic.
Main Features
(1) Assembly structure design,easy installation and easily moved;
(2) Directional wheels can be installed,suitable for small building and high cleanliness area;
(3) Modular design:can be as small as several square meter and can be as large as hundreds of square meters;
(4) It is large useful and effective area,while compared with traditional clean room,it has such feature like low investment, high return and stable ;
(5) Customized design is welcome;
Parameter
External Size (W*D*H) mm | 1500*2000*2500 | 2000*3000*2500 | 3000*4000*2500 | 5000*5000*2500 |
HEPA Filters | 99.999% efficiency at 0.3 um | |||
Consumption | 500W | 800W | 1000W | 1600W |
Weight | 350kg | 420kg | 570kg | 820kg |
FFU Nos. | 4 pcs | 6 pcs | 12 pcs | 25 pcs |
Clean Level | ISO 5 (Class 100), Class A | |||
Control System | Microprocessor control system | |||
Rectangular Tube Material | Stainless steel/ aluminum/ painting steel sheet | |||
Wall Material | Anti-static dustproof curtain | |||
Blower | Built-in centrifugal blower; speed adjustable | |||
UV Lamp | Emission of 253.7nm, with UV timer | |||
Air Velocity | 0.1~0.6m/s, average 0.45m/s | |||
Noise | ≤58db | |||
Power Supply | 110/220V±10%, 50/60HZ | |||
Customized design for clean level, size or material is available |
