| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE/ISO9001/ROHS |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Polywood packing |
| Delivery Time: | 7-15 Working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Sets per Month |
| Purification Rank: | Class 100-class 10000 | Frame: | Steel With Powder Coated Tube |
|---|---|---|---|
| Wall: | Plastic Curtain | Ceiling: | Steel With Powder Caoted Board |
| Hepa Filter: | 99.99%@0.3um | Perfilter: | G1-G2 |
| Application: | OT Room, Air Clening In A Small Area | Product Name: | Class 10000 Clean Room |
| High Light: | Class 10000 Clean Room Booth,Modular Portable Clean Room,Class 10000 Laminar Flow Booth |
||

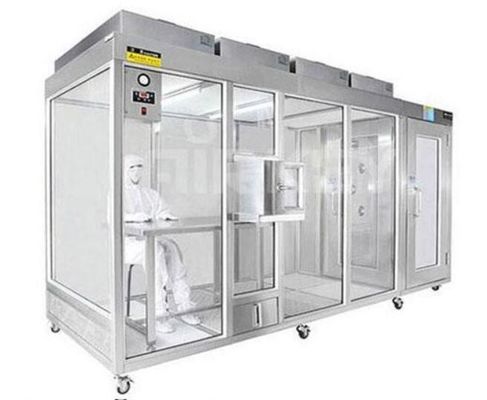

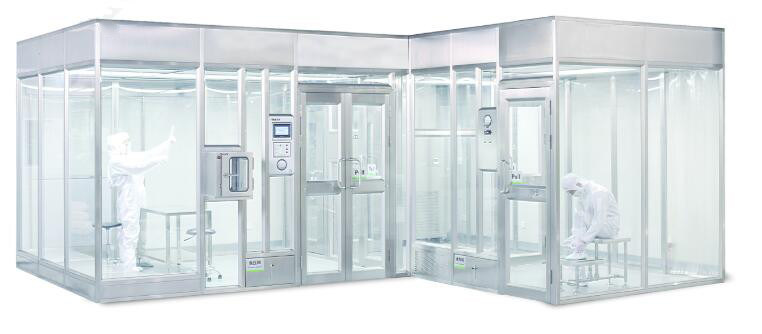

Modular Plastic Curtain Class 10000 Clean Room Booth
Introduction and applications:
Clean Room Modular is a kind of clean room, it can quickly improve the cleanliness of the equipment. Because of its low cost, convenient and flexible asembly, it is widely used in optical, electronic assembly line work, laboratories, assembly area local area purify occasions. The clean booth adopt to FFU generating winds, with industrialize aluminum(stainless steel or painting steel) as it's frame and static-free sticker(or carbon glass), it can make the clean room's cleanliness attain 10-100K.
Food industry, aerospace, life sciences, biotechnology, medical devices, plastic injection module, electronics assembly or hospital pharmacy
Illustration:
1: The frame is steel cube with milk powder coated.
2: M support leg
3: The wall made from clarity synthetic glass.
4: FFU control box.
5: FFU with HEPA filter and pre-filter
6: Purification lamp
7: PVC strip curtain
8: Purification rank class100-1000 (FS209E Stander)
Technical Parameter:
| External Dimension | 2100×3100×2590 | 3100×4100×2590 | 6100×8100×2590 |
| Internal Work Zone | 2000×3000×2200 | 3000×4000×1900 | 6000×8000×2200 |
| Clean Class Level | 1000Class(ISO6) | 100Class(ISO5) | 10000Class(ISO7) |
| Air Velocity | 0.3-0.5m/s | 0.3-0.5m/s | 0.3-0.5m/s |
| Noise | ≤65dB | ≤65dB | ≤65dB |
| Vibration Half Peak | ≤5um | ≤5um | ≤5um |
| Light | 40W×2 | 40W×4 | 40W×8 |
| Power Supply | 220V/50Hz | 220V/50Hz | 220V/50Hz |
| Material |
Framework: Epoxy powder coated steel/ Stainless steel/Aluminum Wall: Anti-static strip curtain/Soft air curtain/Plexiglas |
||
Customer’s design is available.
