| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE/ISO9001/ROHS |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 10-15 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3000 sets per month |
| Roller Material: | Vinyl Silicon Rubber | Feature: | Dust Removal |
|---|---|---|---|
| Handle: | Plastic | Roller Diameter/mm: | 22 |
| Standard Sizes: | 4"/6"/8"/10"/12"/14"/16" | Stickiness: | None/Low/Middle/High |
| High Light: | Washable Cleanroom Tacky Roller,Silicon Sticky Clean Rollers,Dust Removal Sticky Lint Roller |
||

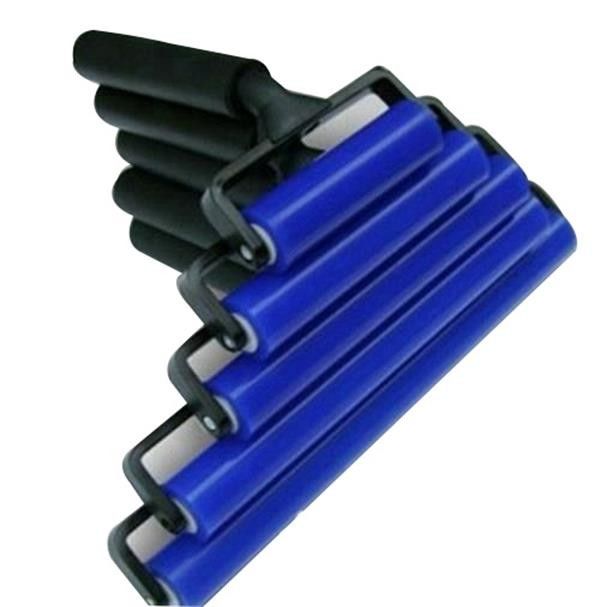

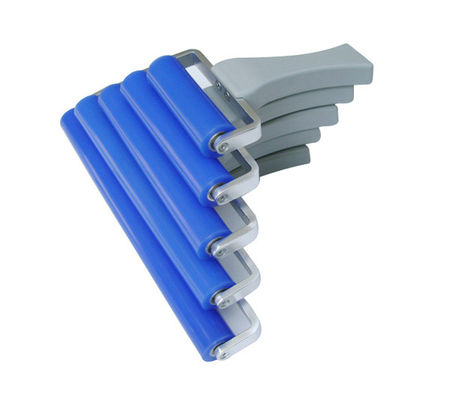

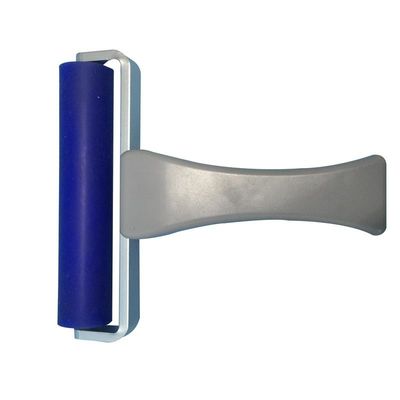

Dust Removal Silicon Washable Cleanroom Tacky Roller
Description:
Silicone roller is made up by Vinyl Silicon Rubber and Aluminum Alloy Frame & Black Plastic Handle
It is a self-adhesive removing products, it is effective on adhering to hair, scurf, atomy or other impurities, and easy to transfer impurities to the sticky pad, so as to ensure silicone long-term self-adhesiveness.
Function:
Its surface is smooth, like a mirror, it can pick up particulates size below 2µm.
Reusable and washable
Technical Data
| Composition | |
| Roller | Vinyl Silicon Rubber |
| Pipe | Aluminum and Bearings |
| Standard Width | 4"/6"/8"/10"/12"/14"/16" |
| Roller Color | Blue |
| Handle | Black Plastic |
| Frame | Aluminum alloy |
| Tackiness | None/Low/Middle/High |
| Protective film | PET |
| General Physical Properties | |
| Roller Diameter/mm | 22 |
| Hardness(shore A) | 25-30degree |
| Tear Strength(KM/M) | 19.08 |
| Tensile Strength (MPa) | 5.3 |
| Elongation at Break(%) | 611 |
| Impact elasticity(%) | 43 |
| Volume resistance | 1012－1513(non-esd) |
| Thickness of Protective film/µm | 40±5 |
| Performance Testing | |
| Rotation | Flexible, no abnormal sound |
| Crumbs Test | No drop litter when roll over 60,000 times |
| Hardness Testing | 25－30 |
| Package | |
| Packing | 1pcs/opp shielding bag |
Application:
Widely used in Circuit Boards PCB, LCD , precision printing, SMT, cleanroom, semiconductor and other industries production
Use Methods:
1. Peel off the clean non-adhesive protective film before use.
2, Use with sticky dust paper, will extend self-adhesiveness.
