| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE/ISO9001/ROHS |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 10-15 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3000 sets per month |
| Roller Material: | Vinyl Silicon Rubber | Frame: | Plastic |
|---|---|---|---|
| Handle: | Plastic | Roller Diameter/mm: | 22 |
| Standard Sizes: | 6"/12" | Stickiness: | None/Low/Middle/High |
| High Light: | 12 Inch Cleanroom Tacky Roller,Silicone DCR Sticky Roller,PCB Cleaning Sticky Lint Roller |
||

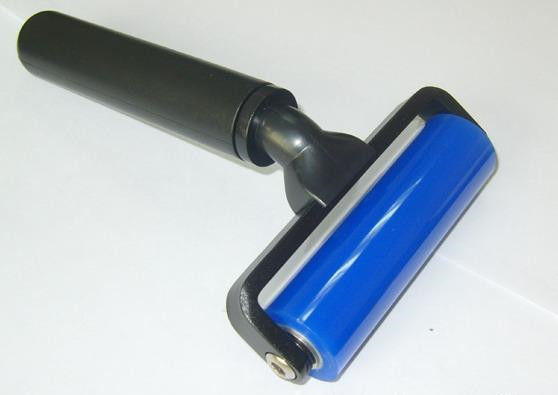

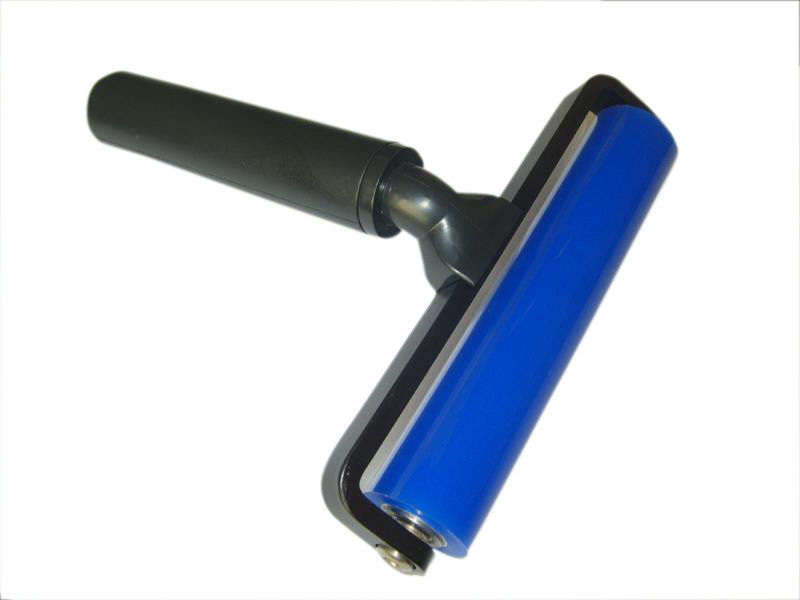

12 Inch Silicone DCR Sticky Roller For PCB Cleaning
Description:
Silicone roller is made up by Vinyl Silicon Rubber and Plastic Frame & Handle
It is a self-adhesive removing products, it is effective on adhering to hair, scurf, atomy or other impurities, and easy to transfer impurities to the sticky pad, so as to ensure silicone long-term self-adhesiveness.
Four kinds of stickness to choose : high stickness ,medium stickness ,low stickness , none stickness
Features:
1. Remove particulate contamination size below 2µm
2. Formulation guarantees the viscous durable, not easy ageing, not flaky.
3. Using comfortable, rollers rotate freely.
4. It can professionally clean the dust of PVC film and IC cards, and static electronic label and so on.
Technical Data
| Composition | |
| Roller | Vinyl Silicon Rubber |
| Pipe | Aluminum and Bearings |
| Standard Width | 6"/12" |
| Roller Color | Blue |
| Handle | Plastic |
| Frame | Plastic |
| Tackiness | None/Low/Middle/High |
| Protective film | PET |
| General Physical Properties | |
| Roller Diameter/mm | 22 |
| Hardness(shore A) | 25-30degree |
| Tear Strength(KM/M) | 19.08 |
| Tensile Strength (MPa) | 5.3 |
| Elongation at Break(%) | 611 |
| Impact elasticity(%) | 43 |
| Volume resistance | 1012－1513(non-esd) |
| Thickness of Protective film/µm | 40±5 |
| Performance Testing | |
| Rotation | Flexible, no abnormal sound |
| Crumbs Test | No drop litter when roll over 60,000 times |
| Hardness Testing | 25－30 |
| Package | |
| Packing | 1pcs/opp shielding bag |
Application:
Widely used in Circuit Boards PCB, LCD , precision printing, SMT, cleanroom, semiconductor and other industries production
Use Methods:
1. Peel off the clean non-adhesive protective film before use.
2, Use with sticky dust paper, will extend self-adhesiveness.
